Article Rating:
Condition:New
Model:SPYMN5206IR
Usually Ships in 3-5 days
Important Notice!
Item will be drop shipped directly from the
manufacturer/distortion-cancelable and
non-returnable.Usually ships in 3-5 days
Product Details
Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers;
Features :
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

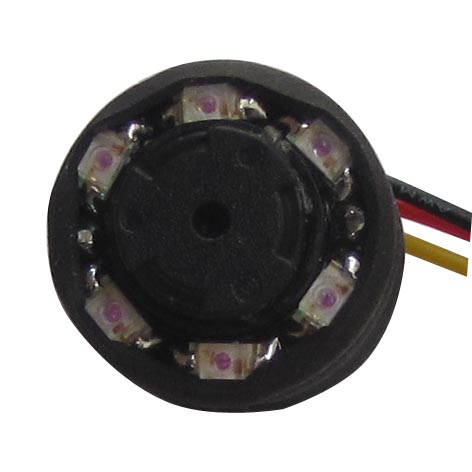

It's an ultra small high definition CCTV camera with excellent night vision.
Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install and conceal.
Minimum illumination is 0.0lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Specification:
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:656(H)¡Á492(V) | PAL:786(H)¡Á576(V) |
| IMAGE SIGNAL PROCESS | Digital Signal Processing System | |
| SENSOR DIMENSION | 4.75mm(H)¡Á3.55mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SCANNING SYSTEM | 2£º1 Interlace | |
| SENSITIVITY | 0.00Lux/5M (IR OPEN) | |
| LENS & VIEW ANGLE | 55 ¡ã | |
| S/N RATIO | 52dB | |
| ELECTRONIC SHUTTER | OUT (1/60 S TO 1/100000 S) | OUT (1/50 S TO 1/100000)S |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| SIZE (L x D) | 14.5 x 14.5 x 15.5mm | |
| WEIGHT | 3g | |
| WORK CURRENT | IR on 200mA | |
| POWER REQUIREMENT | DC 5.0V | |
| OPERATING TEMPERATURE | - 10¡ã C ~ +50¡ãC £¬less than 90% RH | |

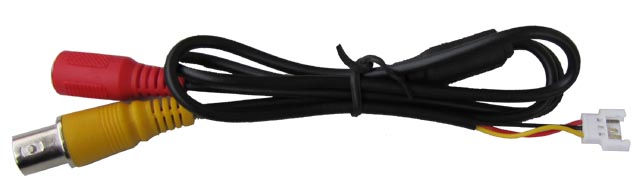

| Connection | PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT | |
